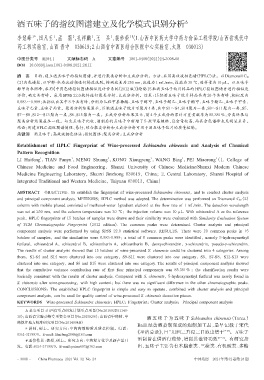

Page 70 - 《中国药房》2021年24期

酒五味子的指纹图谱建立及化学模式识别分析 Δ

1
2
1
1＊
1
1 #
李慧峰 ，田凡玉 ，孟 霜 ，孔祥鹏 ，王 兵 ，裴妙荣 （1.山西中医药大学中药与食品工程学院/山西省现代中
药工程实验室，山西 晋中 030619；2.山西省中西医结合医院中心实验室，太原 030013）
中图分类号 R284.1 文献标志码 A 文章编号 1001-0408（2021）24-3008-06
DOI 10.6039/j.issn.1001-0408.2021.24.11
摘 要 目的：建立酒五味子的指纹图谱，并进行聚类分析和主成分分析。方法：采用高效液相色谱（HPLC）法。以Diamonsil C18
（2）为色谱柱，以甲醇-水为流动相进行梯度洗脱，检测波长为250 nm，流速为1 mL/min，柱温为30 ℃，进样量为10 μL。以五味子
醇甲为参照峰，采用《中药色谱指纹图谱相似度评价系统（2012版）》绘制15批酒五味子饮片样品的HPLC指纹图谱并进行相似度
评价，确定共有峰。采用SPSS 22.0软件进行聚类分析、主成分分析。结果：15批酒五味子饮片样品共有20个共有峰，相似度为
0.983～0.999；共指认出其中8个共有峰，分别为5-羟甲基糠醛、五味子醇甲、五味子醇乙、五味子酯甲、五味子酯乙、五味子甲素、
五味子乙素、五味子丙素。聚类分析结果显示，15批酒五味子饮片可聚为4类，其中S1～S4、S14聚为一类，S9～S11聚为一类，S5、
S7～S8、S12～S13聚为一类，S6、S15聚为一类。主成分分析结果显示，前4个主成分的累计方差贡献率为85.381％，分类结果与
聚类分析结果基本一致。与生五味子比较，酒制后的五味子中新增了5-羟甲基糠醛，且含量较高，而其余色谱峰未见明显差异。
结论：所建HPLC指纹图谱简便、易行，结合聚类分析和主成分分析可用于酒五味子饮片的质量控制。
关键词 酒五味子；高效液相色谱法；指纹图谱；聚类分析；主成分分析

Establishment of HPLC Fingerprint of Wine-processed Schisandra chinensis and Analysis of Chemical
Pattern Recognition
1
1
1
2
1
LI Huifeng ，TIAN Fanyu ，MENG Shuang ，KONG Xiangpeng ，WANG Bing ，PEI Miaorong（1. College of
1
Chinese Medicine and Food Engineering，Shanxi University of Chinese Medicine/Shanxi Modern Chinese
Medicine Engineering Laboratory，Shanxi Jinzhong 030619，China；2. Central Laboratory，Shanxi Hospital of
Integrated Traditional and Western Medicine，Taiyuan 030013，China）
ABSTRACT OBJECTIVE：To establish the fingerprint of wine-processed Schisandra chinensis，and to conduct cluster analysis
and principal component analysis. METHODS：HPLC method was adopted. The determination was performed on Diamonsil C18 （2）
column with mobile phased consisted of methanol-water（gradient elution）at the flow rate of 1 mL/min. The detection wavelength
was set at 250 nm，and the column temperature was 30 ℃；the injection volume was 10 μL. With schisandrol A as the reference
peak，HPLC fingerprints of 15 batches of samples were drawn and their similarity were evaluated with Similarity Evaluation System
of TCM Chromatographic Fingerprint （2012 edition）. The common peaks were determined. Cluster analysis and principal
component analysis were performed by using SPSS 22.0 statistical software. RESULTS：There were 20 common peaks in 15
batches of samples，and the similarities were 0.983-0.999；a total of 8 common peaks were identified，namely 5-hydroxymethyl
furfural，schisandrol A，schisandrol B，schisantherin A，schisantherin B，deoxyschizandrin，γ-schizandrin，pseudo-γ-schizandrin.
The results of cluster analysis showed that 15 batches of wine-processed S. chinensis could be clustered into 4 categories. Among
them，S1-S4 and S14 were clustered into one category，S9-S11 were clustered into one category，S5，S7-S8，S12-S13 were
clustered into one category，and S6 and S15 were clustered into one category. The results of principal component analysis showed
that the cumulative variance contribution rate of first four principal components was 85.381％ ；the classification results were
basically consistent with the results of cluster analysis. Compared with S. chinensis，5-hydroxymethyl furfural was newly found in
S. chinensis after wine-processing，with high content；but there was no significant difference in the other chromatographic peaks.
CONCLUSIONS：The established HPLC fingerprint is simple and easy to operate，combined with cluster analysis and principal
component analysis，can be used for quality control of wine-processed S. chinensis decoction pieces.
KEYWORDS Wine-processed Schisandra chinensis；HPLC；Fingerprint；Cluster analysis； Principal component analysis
Δ 基金项目：山西省重点研发计划重点项目（No.201603D31140-
10）；山西省实验动物专项资金项目（No.2015K06）；山西省中药材、中 酒 五 味 子 为 五 味 子 Schisandra chinensis（Turcz.）
药饮片地方标准研究项目（No.2014004B）
Baill.经黄酒蒸制而成的炮制加工品，最早记载于宋代
＊讲师，硕士。研究方向：中药药效物质及质量控制。电话：
《圣济总录》，曰“用酒三升浸三日取出焙干”。五味子
[1]
0351-3179979。E-mail：lihuifeng2046@163.com
# 通信作者：教授，硕士。研究方向：中药复方化学及新产品开 酒制旨在借酒行药势，增强其滋肾功效 [2－3] 。有研究指
发。电话：0351-3179979。E-mail：peimr602@163.com 出，五味子主要含有木脂素类、三萜类、有机酸类、多糖

·3008 · China Pharmacy 2021 Vol. 32 No. 24 中国药房 2021年第32卷第24期
